Sale!

Shining 3D Intraoral Scanner

$9,999.00

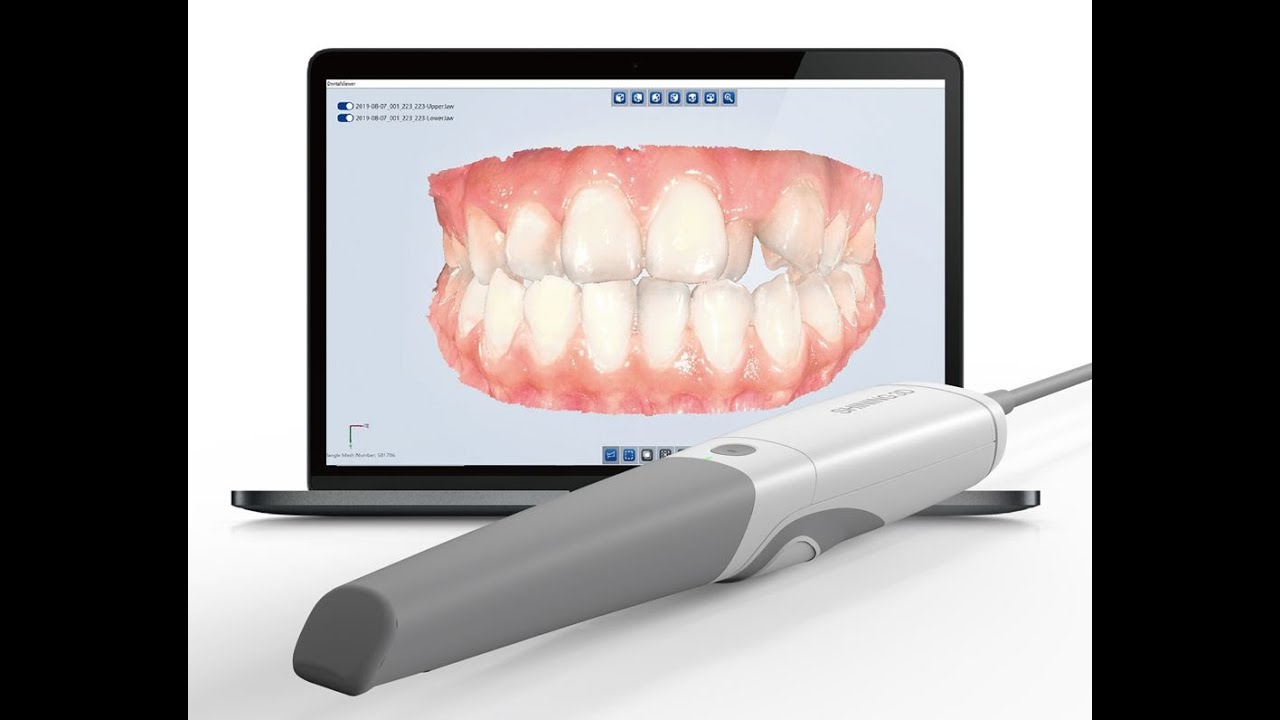

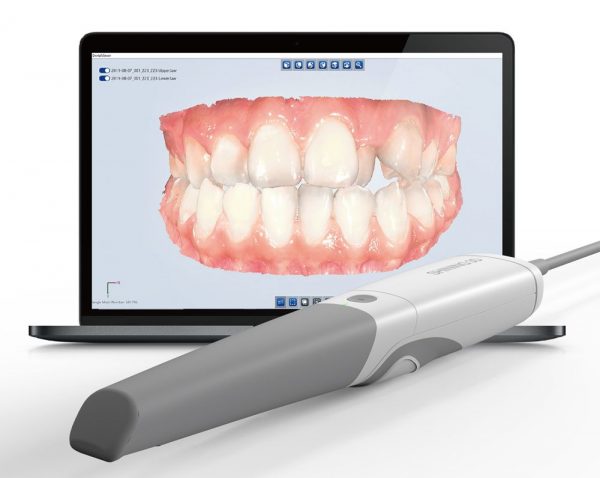

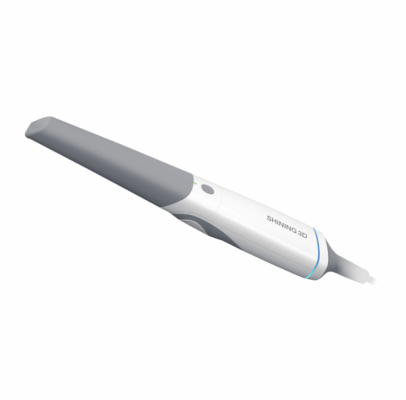

Aoralscan 3

  • Brand New Design
  • Weighs only 8.5 Ounces
  • Fast Speed
  • High Accuracy
  • Powerful AI Process
  • Intuitive Communication
  • Motion Sensing Function
  • Realistic Color Scan
  • Powder Free
  • Open System
  • Indications:  single crowns, inlays, onlays, bridges, veneers, orthodontics and implants

Description


Capture Digital Impressions in Real Time

Fast, Accurate and Exceptional Scan Performance and Chairside Experience.

58 % Greater Scan Field Of View Than Aoralscan 2

  • 16×12 mm
  • FOV (Standard Tip)


Deep Scan Depth up to 22 mm

Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.




2 Tip Sizes

  • Accommodates adults and children
  • Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.
  • Anti-fogging

Tiips are autoclavable – up to 100 times








Motion Sensing – Less Contact, Much Safer

Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.


AI Scan – Speed Up The Scan

Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.




30% – More Accurate

Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.


30% Faster Aoralscan 2

  • Single arch in 25s
  • Full arch in 1 min;




Clinical Toolkit

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.

Under Cut Check

Bite Check

Margin Line Auto Extraction

Tooth Marking

Coordinate Adjustment

Direct Exporting to Exocad




Ortho Simulation for Patients

Patients can preview images of their straightened-out results in real time.


Applications

The Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, 3d teeth scan, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.



Inlay Onlay

All on 6 Implants

6 Unit Bridge

Veneer

Pediatric Dental Care

Orthodontics

How long is the warranty?

It’s included one year manufacturer warranty included parts & labor. The extended warranty can be purchased prior to the end of the standard 1-year warranty.

Support information?

Please contact Shining3D dental support (dental_support@shining3d.com) for any questions or getting the extended warranty.

What is included in the price?

The following items are included:

  • 1x Intraoral Scanner with a USB 3.0 Cable (length: 2m)
  • 1x Protection Cap
  • 5x Scanner Heads (4x Standard Scan Tip and 1x Mini Scan Tip)

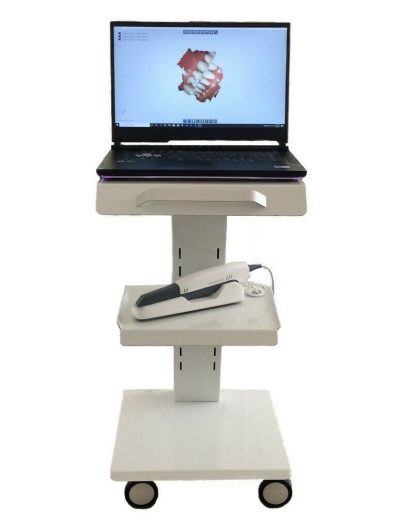

  • 1x Scanner Pedestal
  • 1x AC/DC Power Adapter (input: 100-240 V, 50-60 Hz, 1.0 A; output: 12 V DC, 3 A; power cord length: 1.5 m)
  • 5x Power Cord Plugs
  • 1x Calibrator
  • 1x USB Flash Drive (the software carrier)
  • 1x USB 3.0 Cable (Use it together with the calibrator)
  • 1x Relay Box
  • 1x Package Box

What about any monthly ongoing charges for software updates?

  • It’s perpetual license
  • There are no ongoing subscription fees.
  • It’s free to upgrade for new software versions.

Is the scanner powderless?

Yes! No need for powder, guaranteeing a simplified scanning process and improving patients’s clinical experience.

How accurate is the scanner?

It is very accurate; it has 20 microns of precision per tooth.

Is the scan color realistic?

Yes! Aoralscan provides real-time scan, realistic color, and a clear margin line.

How easy it is to operate?

Our system is very intuitive to operate. It has a user-friendly interface that allows sterile scanning by a technician or dentist using the motion sensing function.

The self-developed scanning software integrates rich data processing functions to obtain high-quality digital impressions with amazing ease.

Can I go back and re-scan a missing spot?

Yes, when some part of the scan is missing during scanning, this retracing function allows users to jump back to missing area for rescan, aligning the data smoothly.

Aoralscan 3 Brochure

16 page pdf file

Aoralscan 3 Instruction Manual

58 page pdf file

Technical Specifications

Scan Field Standard scanner tip: 16 mm × 12 mm × 22 mm;
Mini scanner tip: 12 mm × 9 mm × 22 mm;
Scan Principle Non-contact scanner with structured light
Dimension (L × W × H) 281 mm × 33 mm × 46 mm
Weight 240 ± 10 g (without cables)
Output STL, OBJ, PLY
Connector USB 3.0
Power Input 12V DC/3 A

Recommended System Configuration

CPU Intel Core i7-8700 or higher
RAM 16GB or more
Hard Drive 256 GB SSD or above
Graphic Card (GPU) NVIDIA® RTX 2060 6GB DDR3 or higher *
Operating System Windows 10 Professional (64-bit) or later versions of Windows operating systems
Screen Resolution 1920×1080, 60 Hz or higher
I/O Ports More than 3 Type-A USB 3.0 (or higher) ports

* RTX 30 series graphic card cannot support AI function for all intraoral scanners and lab scanners.
