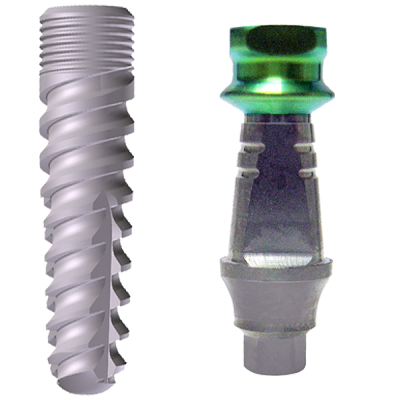

OmniHex Plus Implant CM


Additional Parts

OmniHex® Healing Caps $20.00 $12.50
OmniHex® Implant Analogs $20.00 $12.50
Product price: $120.00
Total options:
Order total:
SKU: OHIP-IMPLANT-CM Categories: ,


  • Compatible with most internal hex implant systems
  • Such as Zimmer®, BioHorizons®, MIS® & Implant Direct Legacy®
  • SBM surface treatment
  • Bone level placement
  • Platform switching
  • Medical Grade 5 ELI Titanium

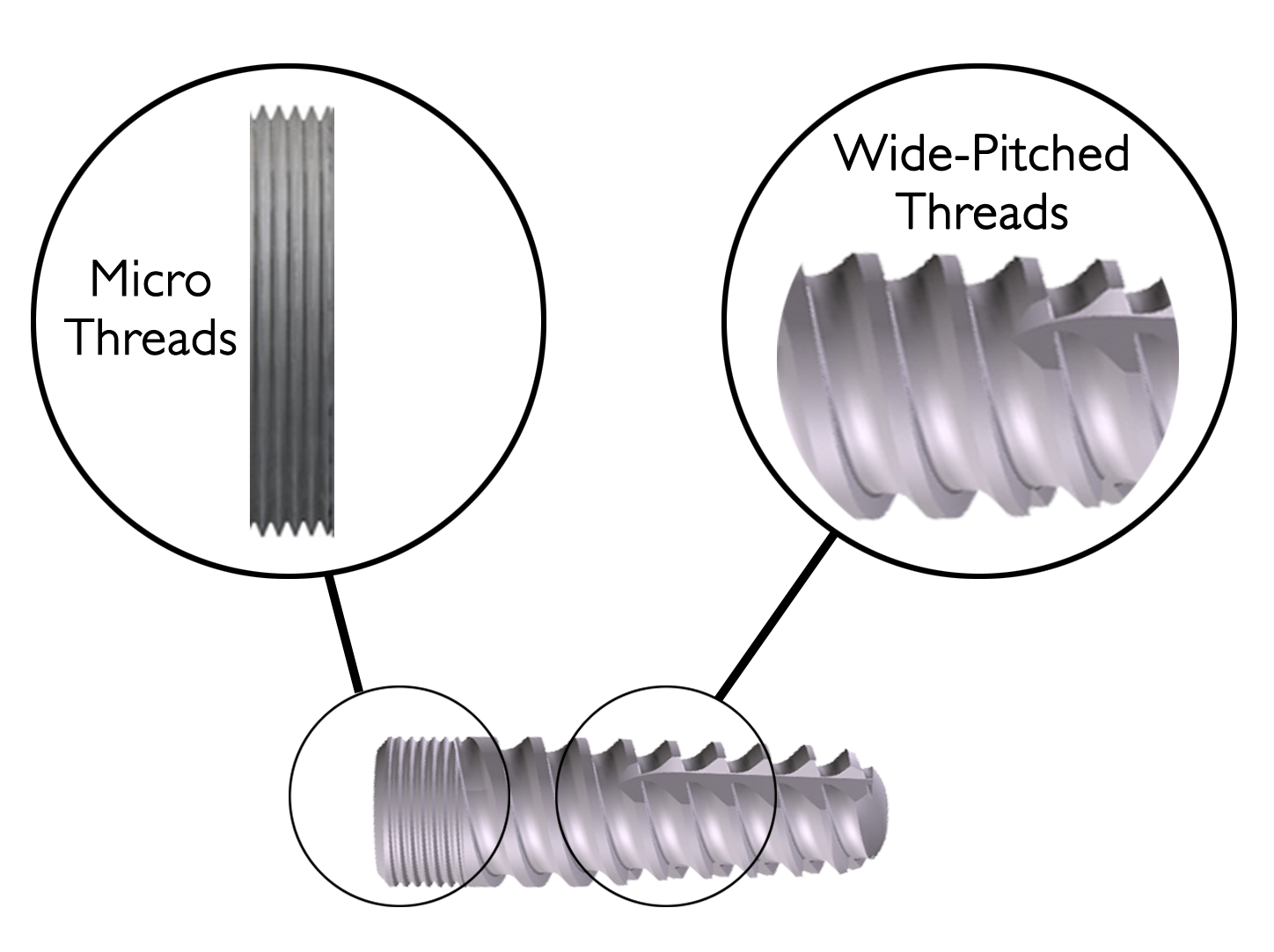

  • 3mm of parallel walled micro threads are designed to increase bone to implant contact at the crest of the ridge connection
  • Micro threads transition to double lead buttress threads
  • Dual taper design enhances initial stability
  • Two self tapping groove design facilitates a simplified surgical protocal
  • The outside threads are tapered at 1.4 degrees which facilitates bone expansion for increased stability
  • The inside threads are tapered 4 degrees which provide more thread engagement
  • Gamma ray sterilized
  • Manufactured in the USA at an FDA cleared facility



Additional information


3.2mm, 3.7mm, 4.2mm, 4.7mm, 5.2mm, 5.7mm


8mm, 10mm, 11.5mm, 13mm, 16mm


Ø3.5, Ø4.5
