Pro-fix® Fixation Screws


  • Aggressive tip and thread design engages bone and allows for precise placement without the use of a pilot hole – even in cortical bone
  • 3.5 mm diameter head provides broad surface area to help prevent membrane perforation or tearing
  • Cruciform head design makes screw pickup easy
  • Biocompatible titanium alloy

Download Pro-fix® Product Information



Pro-fix­­® Membrane Fixation Screws are designed as an attractive alternative to using tacks for membrane stabilisation. Easy pick-up, solid stability of the screw during transfer to the surgical site, and easy placement make membrane fixation fast and easy.

– 1.5mm x 3.0mm size is designed specifically for securing membranes and mesh.
– The self-drilling design of each screw allows penetration through cortical bone without the use of a mallet or the need for drilling pilot holes.

Pro-fix® Tenting Screws are designed with a self-drilling tip, polished neck, and broader head to maintain space under resorbable and non-resorbable membranes in horizontal and vertical bone regeneration procedures.

– 3.5 mm diameter head provides broad surface area to help prevent membrane perforation or tearing.
– Tenting screws are available with a 3 mm, 4 mm or 5 mm polished neck for precise space maintenance.
– 4 mm threaded portion of each screw ensures stability

Pro-fix® Bone Fixation Screws are designed with finer pitched, self-tapping threads that give the screws greater clamping force while using less driver torque. The screws’ threads are equipped with a cutting flute that allows for easier insertion into harder bone. The screws are placed into a 1.2 mm pre-drilled pilot hole.

– Head design allows screw to be screwed down flush to bone surface leaving no gap between the screw’s head and the bone
– Fine pitched threads give screw greater clamping force while using less driver torque
– Bone Fixation screws are available in 8 mm, 10 mm, 12 mm and 14 mm lengths.

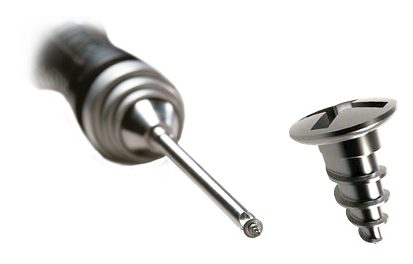

The Pro-Fix® cruciform driver blade fits securely into the head of the screw and provides excellent screw stability upon placement.



Additional information

Screw Type

Bone Fixation, Membrane Fixation, Tenting


3mm, 4mm, 5mm, 8mm, 10mm, 12mm, 14mm

Per Box

1, 5, 10, 20
