Cortical bone collector and ready-to-use grafting mini-syringe all in one instrument.

The disposable semicircular blade: advantages:

  • Maximum cutting efficiency
  • Reduces the time allotted for the bone harvesting procedure
  • Ultra-sharp 160 degree cutting blade allows autogenous bone collection from any bony surface
  • The collected graft features an optimal ratio between size and thickness of the bone curls
  • Effective on any kind of bone surface (plane, concave, convex)
  • Ensures excellent control during the harvesting procedure
  • Scraper can immediately transform into a graft delivery syringe
  • 3 mm external diameter tip that makes delivery of graft possible to defects in areas where access is limited
  • Quickly harvest osteogenic autogenous bone
  • Manually harvest autogenous bone while preserving cell vitality

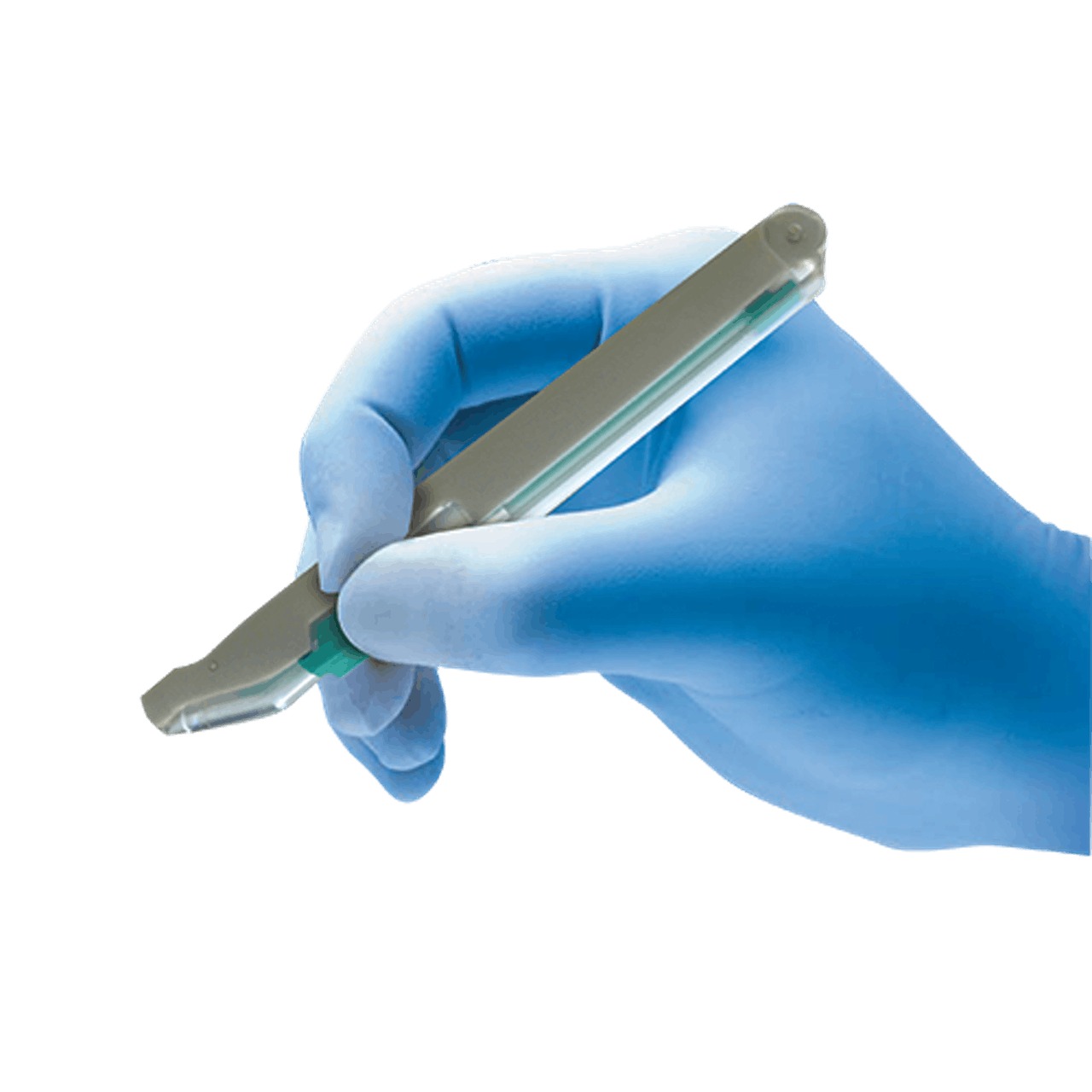

  • Ergonomic design
  • Disposable
  • 0.3 cc transparent collection chamber
  • 3 scrapers / box
SKU: SMART-4890 Categories: ,

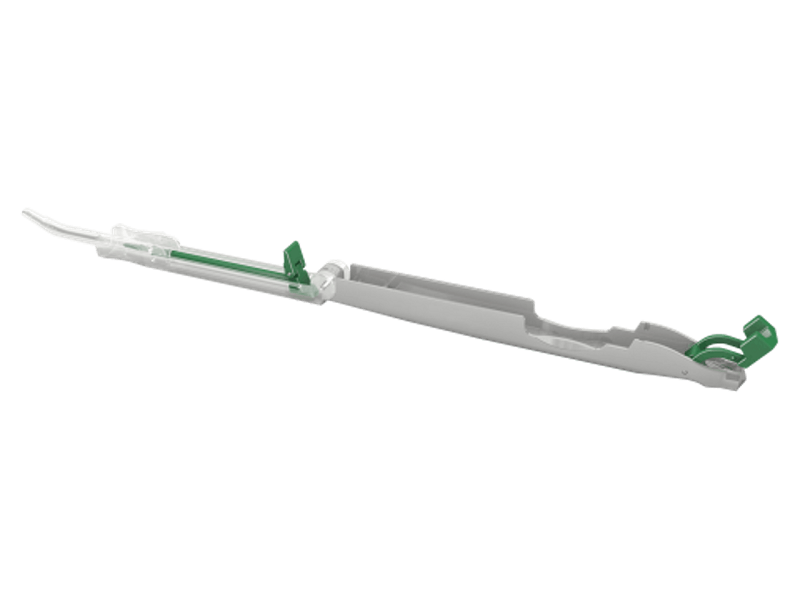

Smartscraper is the new generation of autogenous cortical bone scrapers. The Smartscraper is a single sterile device that allows the clinician to collect autogenous bone in a chamber that can immediately be transformed into a graft delivery syringe. The syringe has a 3 mm external diameter tip that makes delivery of the autogenous bone possible to defects, even in areas where access is limited.

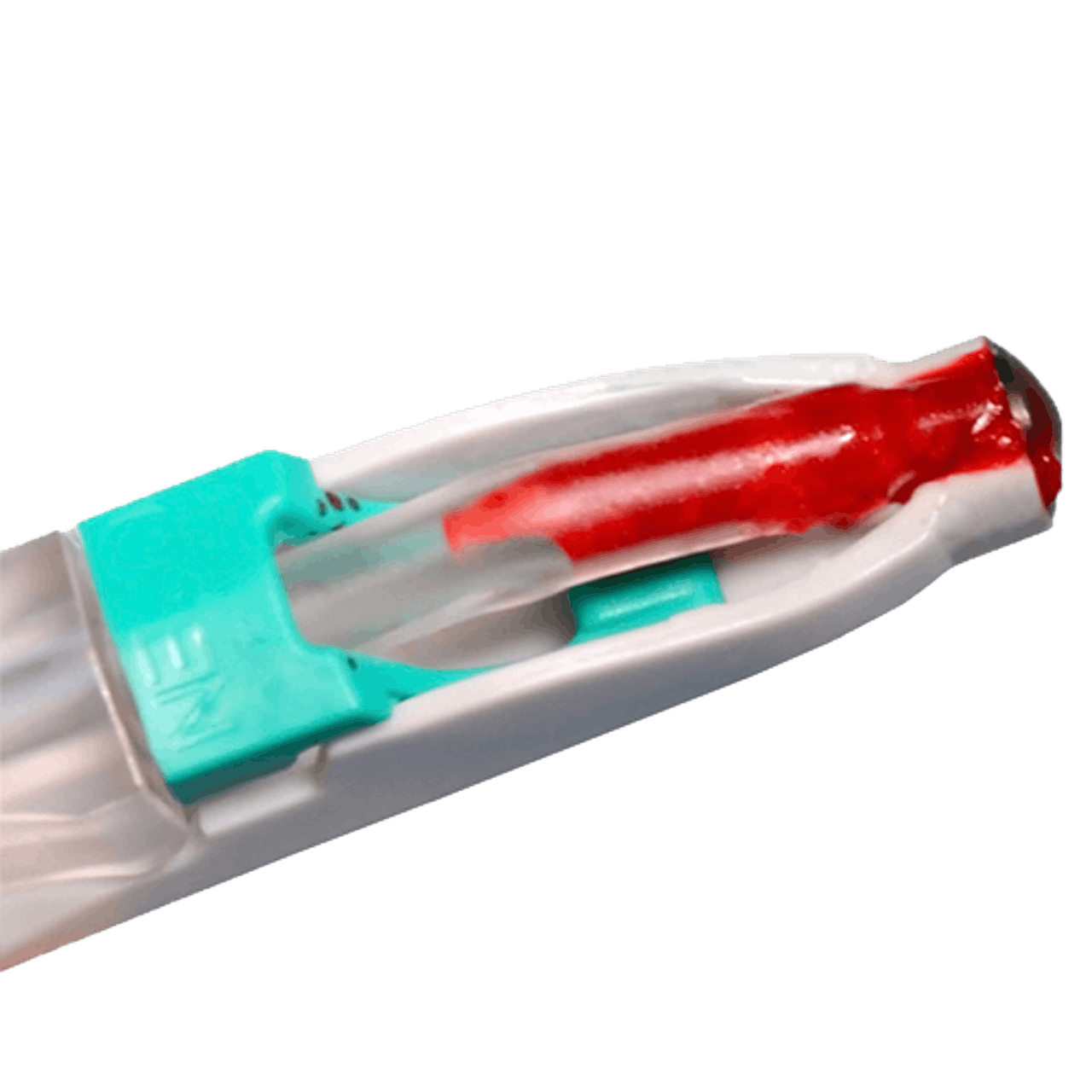

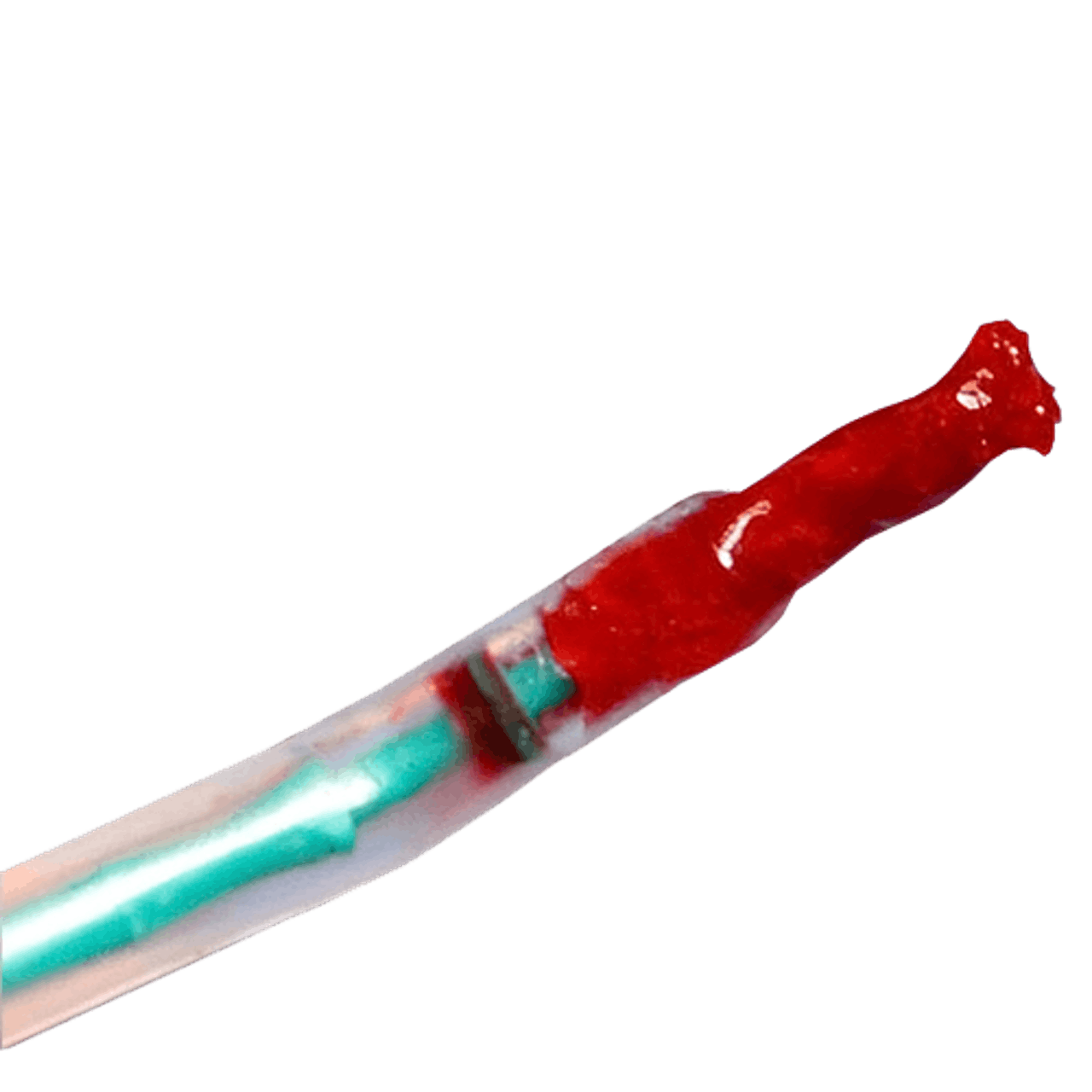

The curled bone shavings harvested with the scraper have a mean length of 1.3 mm and have the porosity and low density to allow angiogenesis. Because the bone is collected with coagulated blood, it displays a high biological plasticity shortly after it is harvested. This makes the graft extremely easy to handle and mold. The sterile, disposable scraper makes providing your patients with mineralized cortical bone easier then ever before.

The new Patent by META: All-in-one, from the harvesting to the grafting.

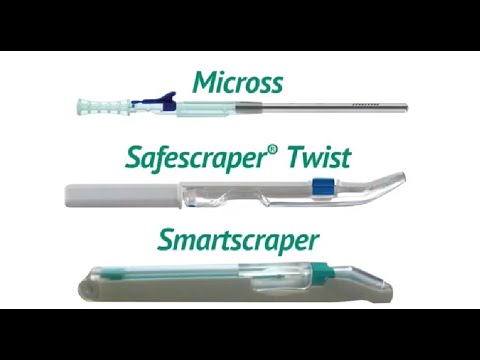

Meta’s product range, born in 2001 with the introduction of Safescraper and Micross is subject to an important renewal thanks to the introduction of the new Smartscraper, a patented instrument featuring a bone cutting blade and a syringe for the graft of the bone curls, all in one single instrument.



Allows the user to have in a single instrument both the bone-cutting blade and the grafting syringe.


Thanks to the minimal overall dimensions of the tip (3mm), it allows to graft bone curls during trans-crestal sinus lift procedures, as well as in hard-to-reach bone defects.


The dual-purpose instrument allows to reduce the surgical time connected to the use of the customary techniques and instruments.

 Minimally invasive

The manual bone harvesting techniques, made possible by our cortical bone collectors, feature low morbidity and are well tolerated by patients.


Allows to collect small grafts as well as bigger ones, directly from any potential intraoral donor site, even from close-to-the-defect areas.


The amount of collected bone graft can cover any surgical need, giving the possibility to avoid the use of any other bone substitute.

Ready to use

Disposable device, proposed in sterile blister pack. Given the wholeness of the packaging, the sterility is guaranteed for 3 years.

Smartscraper Brochure

Smartscraper Long Brochure

Smartscraper Instructions

Osteogenics Catalog
